Robotic navigation system utilization for percutaneous sacroiliac screw placement: surgical setup and technique
Review Article

Robotic navigation system utilization for percutaneous sacroiliac screw placement: surgical setup and technique

Joshua David Piche1, Stefano R. Muscatelli1, Muhammad Abdul-Aziz Waheed2, Rakesh D. Patel1, Ilyas S. Aleem1

1Department of Orthopaedic Surgery, University of Michigan, Ann Arbor, MI, USA; 2Oakland University William Beaumont School of Medicine, Rochester, MI, USA

Contributions: (I) Conception and design: JD Piche, RD Patel, IS Aleem; (II) Administrative support: RD Patel, IS Aleem; (III) Provision of study materials or patients: JD Piche, RD Patel, IS Aleem; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Ilyas S. Aleem, MD, MS, FRCSC. Department of Orthopedic Surgery, University of Michigan, 1500 East Medical Center Drive, 2912 Taubman Center, SPC 5328, Ann Arbor, MI 48109, USA. Email: ialeem@med.umich.edu.

Abstract: Sacroiliac joint (SIJ) pathology is a common cause of significant pain and disability, and operative treatment consisting of SIJ fusion can be performed in cases where non-operative measures fail to provide sustained relief. Through the years, SIJ fusion has evolved from an open invasive procedure, to more recently, being performed through minimally invasive techniques. Intraoperative navigation systems and robotic guidance are becoming popularized for SIJ fusion, as well as other routine and complex spinal cases. The utility of navigation and robotics is the enhanced ability of the surgeon to place instrumentation more accurately, with less dissection, blood less, and overall operative time. We present a technique guide for robotic instrumented SIJ fusion with intraoperative navigation that we have put into practice at our institution and found to be very beneficial to patients for the above reasons. We describe the setup and utilization of these technologies intraoperatively, and provide specific case examples to highlight our technique. The described methods have been found to be effective and reproducible, allowing for minimally invasive SIJ screw placement with high accuracy and safety. We emphasize that utilizing intraoperative navigation and robotics is not meant to substitute for surgeon knowledge of case steps or anatomy, but rather to enhance safety and efficacy. To our knowledge, robotic SIJ fusion has not been previously described in the literature.

Keywords: Spine surgery; robot; robotic navigation; sacroiliac screw; surgical technique


Submitted Nov 22, 2020. Accepted for publication Feb 22, 2021.

doi: 10.21037/jss-20-681


Introduction

The sacroiliac joint (SIJ) is a diarthrodial, synovial joint implicated as a source of chronic leg and lower back pain (LBP) (1). Sacroiliac joint dysfunction (SIJD) is involved in 13–30% of all patients with chronic LBP (2). The actual prevalence is likely underreported, as SIJD is often overlooked due to overlapping symptoms with other potential etiologies.

When attempts at conservative management of SIJD fail, surgical management can be considered. Surgical management of SIJD typically involves SIJ arthrodesis, with open techniques first described in the early 1900s (3,4). Minimally invasive surgical (MIS) techniques were described in the 2000s, and studies demonstrate that MIS SIJ fusion is superior to non-operative measures in regards to improving pain, function, and quality of life (5), up to at least 5 years postoperatively (6). MIS techniques also report decreased blood loss, surgical time, infections, neurovascular injury, and length of stay (7). Traditionally, intraoperative fluoroscopy was used to aid in implant placement. However, with growing emphasis on MIS, computed tomography (CT) navigation and robotic technology has been employed to improve efficiency and efficacy (8). In pedicle screw placement, robotic assistance has been shown to improve accuracy (9), decrease radiation exposure (10), reduce overall surgical and screw placement time (11), and allow for larger pedicle screws with reduced rate of breaches (11). MIS SIJ fusion using intraoperative navigation has been shown to be effective, efficient, and allow for accurate implant placement (8).

Surgical technique for robotic SIJ fusion has not been previously described. The purpose of this article is to provide a detailed workflow for the use of intraoperative robotic navigation for SIJ fusion, with a focus on clinical applications. Ourselves (12,13) and others (11) have recently described in depth how navigation technologies work, so that will not be the focus of this review. Similarly, the purpose of this paper is not to compare navigated vs. free-hand SIJ fusion, but rather to describe our experience and techniques to assist those interested in using this technology. We will discuss use of the Medtronic O-arm and StealthStation (Medtronic, Minneapolis, MN, USA), and the Globus ExcelsiusGPS (Globus Medical, Inc., Audubon, PA, USA) robotic navigation system, as the senior authors are most familiar with these systems. This review does not claim superiority of any particular brand or device, the discussion is intended to be applicable to all systems, and the surgeon is ultimately responsible for choosing which to use. We emphasize that intraoperative navigation and robotic guidance is not a substitute for knowledge of pertinent anatomy. These technologies are designed to assist and augment the skills of the surgeon, not replace them. Navigation alone should not be solely relied on, as this can lead to potential harm of the patient.


Room set up

A large operative theatre is preferred for the case, as this helps to ensure efficiency and maintenance of a safe and sterile environment given the use of multiple large devices, including C-arm, O-arm, and the robotic system.

Neuromonitoring leads are placed after induction of anesthesia, allowing for electromyography (EMG) monitoring during the case, particularly of the L5 nerve root. The patient is positioned prone on a spine table. Care is taken to position the patients’ head and neck in a neutral position, and to pad all bony prominences. Palpation and C-arm fluoroscopy are used to identify landmarks. On the operative side, lines are drawn along the posterior cortical wall of the sacrum, and along the iliac cortical density, to estimate the anticipated incision location (Figure 1). The contralateral posterior superior iliac spine (PSIS) is marked, the utility of which is described below. The C-arm is removed from the room at this time.

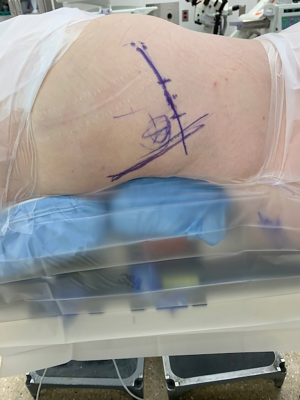

Figure 1 Intraoperative photograph demonstrating patient positioning and marking of anatomical landmarks. The patient is prone on an Allen table. The posterior cortex of the sacrum and the iliac cortical density have been marked using fluoroscopy prior to prepping

Navigation preparation and image acquisition

Prior to using reference frames and the navigated drill and screwdriver (Figure 2A), these tools are registered to the navigation station. A sensory camera is placed at the foot of the bed (Figure 2B), which allows for unencumbered tracking of the navigated instruments. A 1-centimeter (cm) skin incision is made over the contralateral PSIS and a tracking pin is docked into this, allowing for attachment of a passive navigation frame. An intraoperative computed tomography fixture (ICT) is then attached to this passive frame, which allows for the images obtained with the O-arm to automatically sync with the robotic navigation station (Figure 2C). The O-arm is brought in and an intraoperative spin is obtained.

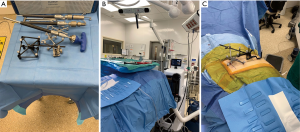

Figure 2 Necessary equipment and setup for robotic navigation. (A) Navigated instrumentation including drills, screwdriver and intraoperative computed tomography fixture (ICT) frame. (B) Intraoperative demonstration of camera sensory system to detect navigated instruments, located at the foot of the bed. (C) Intraoperative photograph of passive navigation frame with attached intraoperative computed tomography (ICT) fixture docked into patients’ posterior superior iliac spine (PSIS).

SI screw templating

The robotic navigation station allows for templating of the desired sacroiliac screws’ length, width and trajectory via a touchscreen using three-dimensional (3D) imaging in the sagittal, axial and coronal planes (Figure 3). The authors’ preference is to template in the sagittal plane initially, followed by axial and coronal views, to ensure the screw is properly placed within the SI joint and sacral body. It is important to confirm that the screw trajectory does not violate the sacral foramina or canal, or travel above the iliac cortical density. Once satisfied with the screw template, this plan is saved within the robotic navigation system. If a multi-level construct is desired, the surgeon is able to select the next surgical level on the station, and repeat the process. Additionally, the navigation station projects skin incision locations of templated screws, so making minor adjustments in trajectory often makes it possible to make the screw entry points more convergent, thus performing a multilevel procedure through one small incision, rather than two.

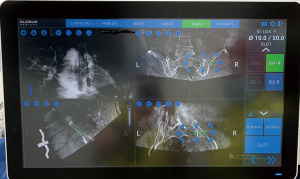

Figure 3 Demonstration of intraoperative templating on the robotic navigation station. Screw trajectory and size can be seen and adjusted in sagittal, coronal and bird’s eye views on the touchscreen interface.

SI screw placement

The robot is brought into the field and the desired level, i.e., S1, is selected on the navigation station. This prompts the robot arm to navigate to the planned start point on the patient, and this location is confirmed with our preoperative fluoroscopic estimated incision markings (Figure 4A). A small, approximately 1–2 cm incision through skin and fascia is made using a scalpel designed for use through the robotic arm. The trajectory is then drilled, and the SI screw is placed through the guidance of the robotic arm (Figure 4B). The robot guides the path of the drill and screw, preventing excessive skiving or deviation from the templated paths. The surgeon is able to watch on the navigation screen during drilling and screw insertion to ensure correct trajectory and length on multiple views (Figure 4B). When the screw reaches the correct templated location, the navigation system provides check marks to confirm this. If performing multi-level surgery, the surgeon would then select the next desired level, and repeat the process. Once all screws are placed, it is our preference to perform a final EMG test and intraoperative O-arm spin. This allows confirmation that the nerve roots have not been injured and all screws have been placed in safe positions, prior to leaving the operative suite.

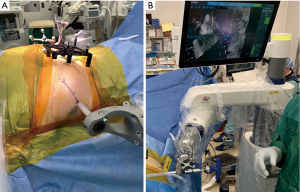

Figure 4 Intraoperative photographs demonstrating utilization of robotic navigation. (A) The robotic arm has positioned itself at incision location based off of templating. As seen, this lines up precisely with preoperative marking of anticipated incision location based off of fluoroscopy. (B) Demonstration of the robotic navigation arm and instrumentation being used intraoperatively. The surgeon is seen using the robotic specific instrumentation to place the templated screw path with the assistance of the robotic arm. The navigation screen is well-positioned so the surgeon can see this at all times to verify correct drill and screw paths. The surgical level and side, as well as screw size are shown on the screen. The screw position can be seen on multiple views as it is placed into the patient. The bottom right-hand screen analyzes the deflection of the screw to indicate if too much deviation or torque is being applied.

Summary and case examples

A 42-year-old female with a history of L5–S1 fusion presented with left buttock pain that radiated down her posterior thigh. Examination was notable for pain with palpation of the left SI joint, as well as pain in the left SI joint region with left hip flexion, abduction and external rotation (FABER). Imaging revealed her previous hardware without evidence of complications, as well as arthritic changes at the bilateral SI joints (Figure 5A). She was referred for a left SIJ injection, which transiently provided 100% relief of symptoms. She underwent a left SI fusion with screws at S1 and S2. She was discharged home the day of surgery, and at her 2-week postoperative appointment, her pain was completely resolved, and post-operative imaging confirmed well placed screws (Figure 5B,C).

Figure 5 Pre- and post-operative imaging of a patient who underwent robotic sacroiliac joint fusion. (A) Preoperative AP lumbar films demonstrating bilateral sacroiliac joint degenerative changes as well as prior L5–S1 fusion hardware. (B) Post-operative AP films showing well-placed left S1 and S2 sacroiliac screws. (C) Post-operative lateral films showing well-placed left S1 and S2 sacroiliac screws. AP, anteroposterior.

A 31-year-old male laborer presented with right sided LBP, as well as right buttock, groin and thigh pain with paresthesias. Exam revealed right SI joint tenderness, and positive FABER. Imaging revealed a grade 1 L5–S1 isthmic spondylolisthesis without instability, and bilateral SI joint degeneration (Figure 6A). A right SI joint injection provided transient, but complete relief of his pain and paresthesias. Therefore, he underwent right SI joint fusion with screws at S1 and S2, and was discharged home on the day of surgery. At his 3-week postoperative appointment, his right sided symptoms were greatly improved and his paresthesias were completely resolved. Post-operative imaging confirmed well placed screws (Figure 6B,C).

Figure 6 Pre- and post-operative imaging of a patient who underwent robotic navigated sacroiliac joint fusion. (A) Preoperative AP lumbar films demonstrating bilateral sacroiliac joint degenerative changes. (B) Post-operative AP films showing well-placed right S1 and S2 sacroiliac screws. (C) Post-operative lateral films showing well-placed right S1 and S2 sacroiliac screws. AP, anteroposterior.

Discussion

The SIJ is a common source of significant pain and discomfort in the lower back or legs (1,2). While a good history, physical examination, and radiographs are important in the workup, SIJ injection is the gold standard for diagnosis. Some etiologies of SIJD include fracture, soft tissue injury, sacroiliitis due to osteoarthritis or spondyloarthropathies, infection, scoliosis, and malignancy. Conservative treatment regimens for SIJD include physical therapy, manipulation of the joint, and anti-inflammatory medications. More invasive options include steroid injections and radiofrequency denervation. If conservative measures fail, surgical intervention is warranted. We generally aim for an 80% symptom improvement rate after steroid injection prior to surgical consideration.

MIS SIJ fusion is becoming more popular with the increased availability of intraoperative image-guided navigation and robotic systems. It is the authors preference to perform all of our SIJ fusion procedures, both routine or complex, using intraoperative robotic navigation. We would like to emphasize that SIJ fusions do not have to be done with robotic navigation. However, in our experience, when performing SIJ fusion using our described technique, we have found that utilizing this technology has improved our operative time, blood loss, accuracy, and ultimately patient outcomes.

Lastly, cost considerations should be taken into account when discussing robotic navigation technologies. The initial cost for robotic systems can vary widely, with prices ranging from $550,000 to $2 million, with annual maintenance fees around 10% of this initial cost (14,15). Despite these high initial costs, the literature shows that robotic systems are typically cost-effective in the long-term due to the fact that operative times, revision surgeries, length of stay in hospital, and infections are typically reduced by utilization of this technology (14,15). In a study comparing results of robotic vs. non-robotic thoracolumbar fusions in 557 patients, Menger et al. demonstrated a 1-year cost-savings of $608,546 by using robotic navigation, attributed to the above reasons (15).


Limitations

Although using intraoperative navigation and robotic instrumentation for placement of sacroiliac screws is not a necessity, it has the potential to be a valuable tool for the spine surgeon and patients. Further research is needed to elucidate the outcomes of robotic vs. non-robotic instrumented SI screws, but in the authors’ experience, it has been a useful and effective tool, reducing our operative time, blood loss, fluoroscopic use, and screw accuracy. Additionally, utilization of the robot is likely to be cost-effective in the long-term.

We would again like to emphasize that these technologies are not meant to replace knowledge of operative anatomy or steps. The surgeon should not become complacent or overly-confident when using navigation or robotics. Anatomical landmarks and knowledge should be continuously used throughout to verify accuracy and provide safeguard against possible malfunction or inaccuracy of these systems.


Conclusions

Robotics and navigation in spine surgery are exciting and growing technologies that have the potential to offer the surgeon many new perioperative advantages. The described technique for robotic navigated SIJ fusion provided in this paper is meant to serve as a guide to help the efficiency and safety of others using this technology. We have found our method to be reproducible, safe, and beneficial to our patients.
